IP Kamera Mega Pixel

Larger picture

Nyhed;

Diamig VideoTeknik introducerer høj kvalitets IP Mega pixels kameraer fra Arecont Vision - USA.

Et Mega pixels IP kamera erstatter op til flere analoge kameraer i samme område, og tager ekstremt gode billeder i HD format.

Optager knivskarpe billeder såvel indendørs som udendørs.

POE (Power Over Ethernet) – kompatibelt.

Kameraet passer i standard kamerahus til udendørs brug

Hent mere info under Brochurefanen her til venstre.

AV1300

inkl. moms.

Larger picture

1.3 Mpixel IP-camera sensitive to 0.5 lux @ F 1.4

Frame Rate 30 fps @ Resolution 1,280 x 1,024

HIGH RESOLUTION & FULL MOTION:

AV1300 network camera delivers full motion progressive scan 1280 x 1024 video at 30 fps featuring massively-parallel MegaVideo® image processing architecture capable of sustaining over 6 billion operations per second.

- COST EFFICIENCY: High resolution and crystal clear imagery allows the AV1300 to substitute up to three analog cameras; thereby reducing the total cost of installation. No need to supply a separate power source since the power can be drawn from a low cost Power-over-Ethernet switch.

- FORENSIC ZOOMING: AV1300 surveillance system has the ability to zoom after the event from high resolutions digital archives and the simultaneous viewing of zoomed and full field of view images.

- EXCELLENT MOTION DETECTION: Onboard real-time motion detection with size and sensitivity controls for up to 64 separate motion detection zones.

1.3 Megapixel CMOS Image Sensor
1280(H) x 1024(V) pixel array
½” optical format
4.2 μm pixel pitch
Bayer mosaic RGB filter
Sensitivity 0.5 lux @ F1.4
Dynamic Range 60 dB
Maximum SNR 45 dB

Data Transmission

Data Rate up to 55Mbps
Video Frame Rate up to 30 fps @ 1280 x1024
Motion JPEG with 21 levels of quality
TFTP & HTTP Transmission Protocol
100Base-T Ethernet Network Interface

Pris er eks. objektiv

AV2100

inkl. moms.

Larger picture

2 Mpixel IP-camera sensitive to 0.5 lux @ F 1.4

Frame Rate 24 fps @ Resolution 1,600 x 1,200

The AV-2100 offers cinema compatible high frame rates to allow real time high definition digital video surveillance with 6 times the resolution of the best analog surveillance cameras

GREAT HIGH RESOLUTION & FULL MOTION: AV2100 network camera delivers full motion progressive scan 1600 x 1200 video at 24 fps featuring massively-parallel MegaVideo® image processing architecture capable of sustaining over 6 billion operations per second.

- GREAT COST EFFICIENCY: High resolution and crystal clear imagery allows the AV2100 to substitute up to six analog cameras; thereby reducing the total cost of installation. No need to supply a separate power source since the power can be drawn from a low cost Power-over-Ethernet switch.

- GREAT FORENSIC ZOOMING: AV2100 surveillance system has the ability to zoom after the event from high resolutions digital archives and the simultaneous viewing of zoomed and full field of view images.

- EXCELLENT MOTION DETECTION: Onboard real-time motion detection with size and sensitivity controls for up to 64 separate motion detection zones.

Imaging

2 Megapixel CMOS Image Sensor
1600(H) x 1200(V) pixel array
½” optical format
4.2 μm pixel pitch
Bayer mosaic RGB filter
Sensitivity 0.5 lux @ F1.4
Dynamic Range 60 dB
Maximum SNR 45 dB

Data Transmission

Data Rate up to 55Mbps
Video Frame Rate up to 24 fps @ 1600 x1200
Motion JPEG with 21 levels of quality
TFTP & HTTP Transmission Protocol
100Base-T Ethernet Network Interface

Pris er eks. moms.

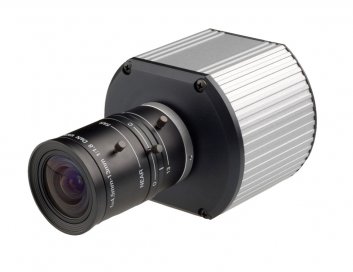

AV3100

inkl. moms.

Larger picture

3 Mpixel IP-camera sensitive to 1 lux @ F 1.4

Frame Rate 22 fps @ Resolution 1,920 x 1,080

The AV-3100 offers cinema compatible frame rates to allow realtime high definition digital video surveillance with 10 times the resolution of the best analog surveillance cameras.

- SUPERB HIGH RESOLUTION & FULL MOTION: AV3100 network camera delivers full motion progressive scan 1920 x 1080 video at 22 fps featuring massively-parallel MegaVideo® image processing architecture capable of sustaining over 6 billion operations per second.

- SUPERB COST EFFICIENCY: High resolution and crystal clear imagery allows the AV3100 to substitute up to ten analog cameras; thereby reducing the total cost of installation. No need to supply a separate power source since the power can be drawn from a low cost Power-over-Ethernet switch.

- SUPERB FORENSIC ZOOMING: AV3100 surveillance system has the ability to zoom after the event from high resolutions digital archives and the simultaneous viewing of zoomed and full field of view images.

- EXCELLENT MOTION DETECTION: Onboard real-time motion detection with size and sensitivity controls for up to 64 separate motion detection zones.

Imaging

3 Megapixel CMOS Image Sensor
2048(H) x 1536(V) pixel array
½” optical format
3.2 μm pixel pitch
Bayer mosaic RGB filter
Sensitivity 1 lux @ F1.4
Dynamic Range 60 dB
Maximum SNR 45 dB

Data Transmission

Data Rate up to 55Mbps
Video Frame Rate up to 20 fps @ 1920x1200
Motion JPEG with 21 levels of quality
TFTP and HTTP Transmission Protocol
100Base-T Ethernet Network Interface

Pris er eks. objektiv.

AV3130

inkl. moms

Larger picture

Sensitivity from 0.01 lux to 100,000 lux

Frame Rate 20 fps @ Resolution 1,920 x 1,200

Multi-sensor DayNight™ AV3130 leverages proprietary patent-pending technology and alleviates the cost and sensitivity shortcomings associated with multi-megapixel video surveillance.

SUPERB HIGH RESOLUTION & FULL MOTION: AV3130 network camera delivers full motion progressive scan 1920 x 1200 video at 20 fps featuring massively-parallel MegaVideo® image processing architecture capable of sustaining over 6 billion operations per second.

- SUPERB ILLUMINATION RANGE & SENSITIVITY: While sophisticated conventional cameras improve low-light sensitivity by mechanically removing the IR filter, the AV3130 uses DualBand™ technology that seamlessly switches to optimized monochrome sensor in low light, avoiding sensitivity drop-off due to color filters and small pixels and accommodating 10,000,000:1 range of scene illuminations, from bright sunlight to cloudy moonlight.

- SUPERB SYSTEM RELIABILITY & FUNCTIONALITY: AV3130 has no moving mechanical parts and is complemented by state-of-the-art surveillance software capable of live image acquisition and display from multiple cameras, policy-based digital archiving and video redistribution across local and wide are networks.

- SUPERB COST EFFICIENCY: High resolution and crystal clear imagery allows the AV3130 to substitute up to ten analog cameras; thereby reducing the total cost of installation. No need to supply a separate power source since the power can be drawn from a low cost Power-over-Ethernet switch.

Imaging

½” CMOS Image Sensors:
- 3 Mpixel Color 2048(H) x 1536(V)
- 1.3 Mpixel Monochrome 1280(H) x 1024(V)
Bayer mosaic RGB filter
Sensitivity 0.01 lux @ F1.4
Dynamic Range 60 dB
Maximum SNR 45 dB

Data Transmission

Data Rate up to 55Mbps
Video Frame Rate up to:
- 20 fps @ 1920x1200
- 30 fps @ 1280x1024
Motion JPEG with 21 levels of quality
TFTP & HTTP Transmission Protocol
100Base-T Ethernet Network Interface

Priser er eks. objektiv.

AV5100

inkl. moms

Larger picture

5 Mpixel IP-camera sensitive to 1 lux @ F 1.4

Frame Rate 15 fps @ Resolution 2,560 x 1,600

The AV5100 offers cinema compatible frame rates to allow realtime high definition digital video surveillance with 15 times the resolution of the best analog surveillance cameras

- ULTRA HIGH RESOLUTION & FULL MOTION: AV5100 network camera delivers full motion progressive scan 2560 x 1600 video at 15 fps featuring massively-parallel MegaVideo® image processing architecture capable of sustaining over 6 billion operations per second

- ULTRA COST EFFICIENCY: High resolution and crystal clear imagery allows the AV5100 to substitute up to fifteen analog cameras; thereby reducing the total cost of installation. No need to supply a separate power source since the power can be drawn from a low cost Power-over-Ethernet switch.

- ULTRA FORENSIC ZOOMING: AV5100 surveillance system has the ability to zoom after the event from high resolutions digital archives and the simultaneous viewing of zoomed and full field of view images

Imaging

5 Megapixel CMOS Image Sensor
2592(H) x 1944(V) pixel array
½” optical format
2.2 μm pixel pitch
Bayer mosaic RGB filter
Sensitivity 1 lux @ F1.4
Dynamic Range 60 dB
Maximum SNR 41 dB

Data Transmission

Data Rate up to 55Mbps
Video Frame Rate up to 15 fps @ 2560x1600
Motion JPEG with 21 levels of quality
TFTP and HTTP Transmission Protocol
100Base-T Ethernet Network Interface

Pris er eks. objektiv.

AV8180

inkl. moms.

Larger picture

8 Mpixel 180° IP-camera sensitive to 1 lux @ F 2.0

Panoramic Camera with Four 2 Megapixel Imagers

The AV8180 camera is based on SurroundVideo® technology and offers panoramic views and cinema compatible high frame rates to allow real time high definition digital video surveillance with 24 times the resolution of the best analog surveillance cameras

- GREAT HIGH RESOLUTION & FULL MOTION: AV8180 network camera delivers full motion progressive scan 1600 x 1200 video at 22 fps per channel featuring massively-parallel MegaVideo® image processing architecture capable of sustaining over 6 billion operations per second.

- GREAT COST EFFICIENCY: High resolution and crystal clear imagery allows the AV8180 to substitute up to 24 analog cameras; thereby reducing the total cost of installation. No need to supply a separate power source since the power can be drawn from a low cost Power-over-Ethernet switch.

- GREAT FORENSIC ZOOMING: AV8180 surveillance system has the ability to zoom after the event from high resolutions digital archives and the simultaneous viewing of zoomed and full field of view images.

- EXCELLENT MOTION DETECTION: Onboard real-time motion detection with size and sensitivity controls for up to 64 separate motion detection zones per channel.

Imaging

Four 2 Megapixel CMOS Image Sensors
1600(H) x 1200(V) pixel array each sensor
½” optical format
4.2 μm pixel pitch
Bayer mosaic RGB filter
Sensitivity 1 lux @ F2.0
Dynamic Range 60 dB
Maximum SNR 45 dB

Data Transmission

Data Rate up to 55Mbps
Video Frame Rate:
88 fps @ 800 x 600 per channel
22 fps @ 1600 x 1200 per channel
Motion JPEG with 21 levels of quality
TFTP & HTTP Transmission Protocol
100Base-T Ethernet Network Interface

Pris er inkl. objektiver.

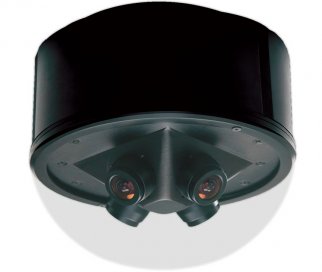

AV8360

inkl. moms.

Larger picture

8 Mpixel 360° IP-camera sensitive to 0.5 lux @ F 1.4

Panoramic Camera with Four 2 Megapixel Imagers

The AV8360 camera offers panoramic views and cinema compatible high frame rates to allow real time high definition digital video surveillance with 24 times the resolution of the best analog surveillance cameras

- GREAT HIGH RESOLUTION & FULL MOTION: AV8360 network camera delivers full motion progressive scan 1600 x 1200 video at 22 fps featuring massively-parallel MegaVideo® image processing architecture capable of sustaining over 6 billion operations per second.

- GREAT COST EFFICIENCY: High resolution and crystal clear imagery allows the AV8360 to substitute up to 24 analog cameras; thereby reducing the total cost of installation. No need to supply a separate power source since the power can be drawn from a low cost Power-over-Ethernet switch.

- GREAT FORENSIC ZOOMING: AV8360 surveillance system has the ability to zoom after the event from high resolutions digital archives and the simultaneous viewing of zoomed and full field of view images.

- EXCELLENT MOTION DETECTION: Onboard real-time motion detection with size and sensitivity controls for up to 64

separate motion detection zones per channel.

Imaging

Four 2 Megapixel CMOS Image Sensors
1600(H) x 1200(V) pixel array each sensor
½” optical format
4.2 μm pixel pitch
Bayer mosaic RGB filter
ensitivity 0.5 lux @ F1.4
Dynamic Range 60 dB
Maximum SNR 45 dB

Data Transmission

Data Rate up to 55Mbps
Video Frame Rate (all four channels in parallel):
88 fps @ 800 x 600
22 fps @ 1600 x 1200
Motion JPEG with 21 levels of quality
TFTP & HTTP Transmission Protocol
100Base-T Ethernet Network Interface

Pris er inkl. objektiver

AV100

inkl. mons.

Larger picture

Se op til 16 HDTV kameraer ad gangen ved 30 bps.

Optage mere end 240 bps ved 1,920 x 1,200

Arecont Vision har udviklet et kanont godt bruger software, som er utroligt brugervenligt, og let at installerer.

The world’s fastest IP-video systems from Arecont Vision are based on proprietary massively-parallel MegaVideo® technology and take advantage of unique functionality unavailable with analog cameras.

Complementing its line of megapixel cameras Arecont Vision offers flexible video surveillance system software AV100 that supports full motion real-time HDTV multi camera viewing and policy-based HDTV digital archiving, remote access, as well as automatic identification and configuration of all installed cameras.

In addition to standard functions like remote multi-user browser-based access to live and archived footage, AV100 surveillance software also supports post-event zooming from digital archives, simultaneous viewing of full field of view and multiple zoomed images from the same camera using multi-streaming feature of AV cameras, as well as instantaneous multi-user electronic pan, tilt and zoom.

Video Display

Multi Camera Views Up to 16 cameras at full motion frame rates

Resolution View video in full, half and quarter resolution modes

Maximum Resolution Up to 2592 x 1944 full screen single camera display

Frame Rate Up to 30 fps @ 1280 x1024 (Depending on CPU speed)

Multi Streaming Simultaneously stream and view multiple cameras in reduced resolution mode while also viewing full resolution zoomed windows from the same cameras (up to 4 zoomed windows from each camera transmitted as separate video streams)

Video Archiving

Policy-Based Recording Specify archival frequency for each camera or limit recording to images containing motion

Recording Frame Rate Over 240 fps @ 1920x1200 resolution

Motion Detection Specify multiple detection windows, motion sensitivity and minimum moving object size for each camera

AVI Video Maker Create AVI video clips from archived footage

Multi-Disk Recording Specify disk and directory for archiving of each camera

Playback Interactive zoom during playback, playback in full or reduced resolution; synchronized playback of multiple cameras at the same time, playback all frames or only frames that contain motion, forward, fast forward and backward playback, find recorded events by date, time or motion, single frame stepping, export individual jpeg images.

Remote Access

Browser-based access Access video remotely via IE browser

Remote Viewing View live video from one or multiple cameras in full or reduced resolution

Remote Zoom Multiple authorized users can request zoomed video and independently perform PTZ for each camera

Multi-System Access Access multiple video clusters from the same web page

Hent yderlig info under brochurefanen
